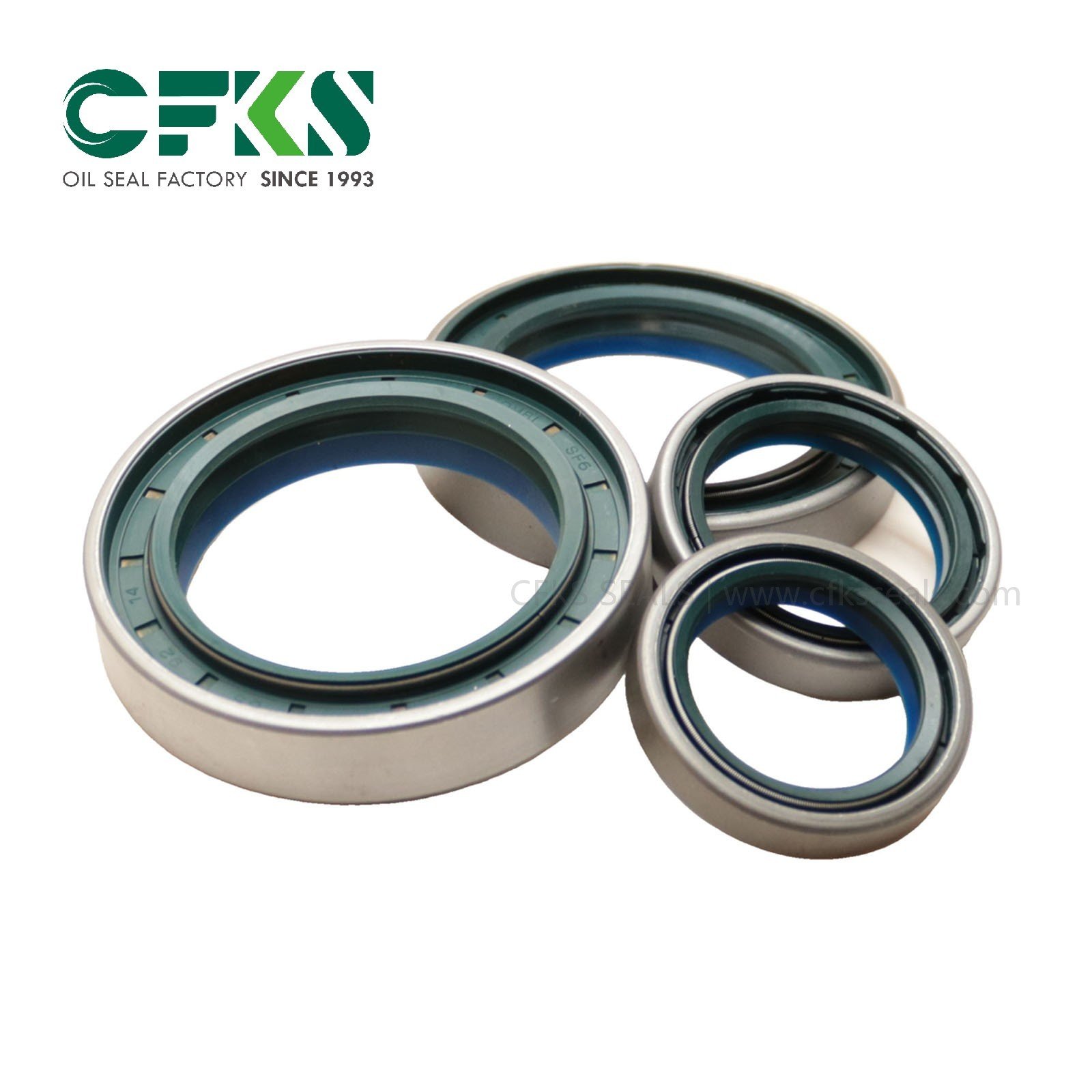

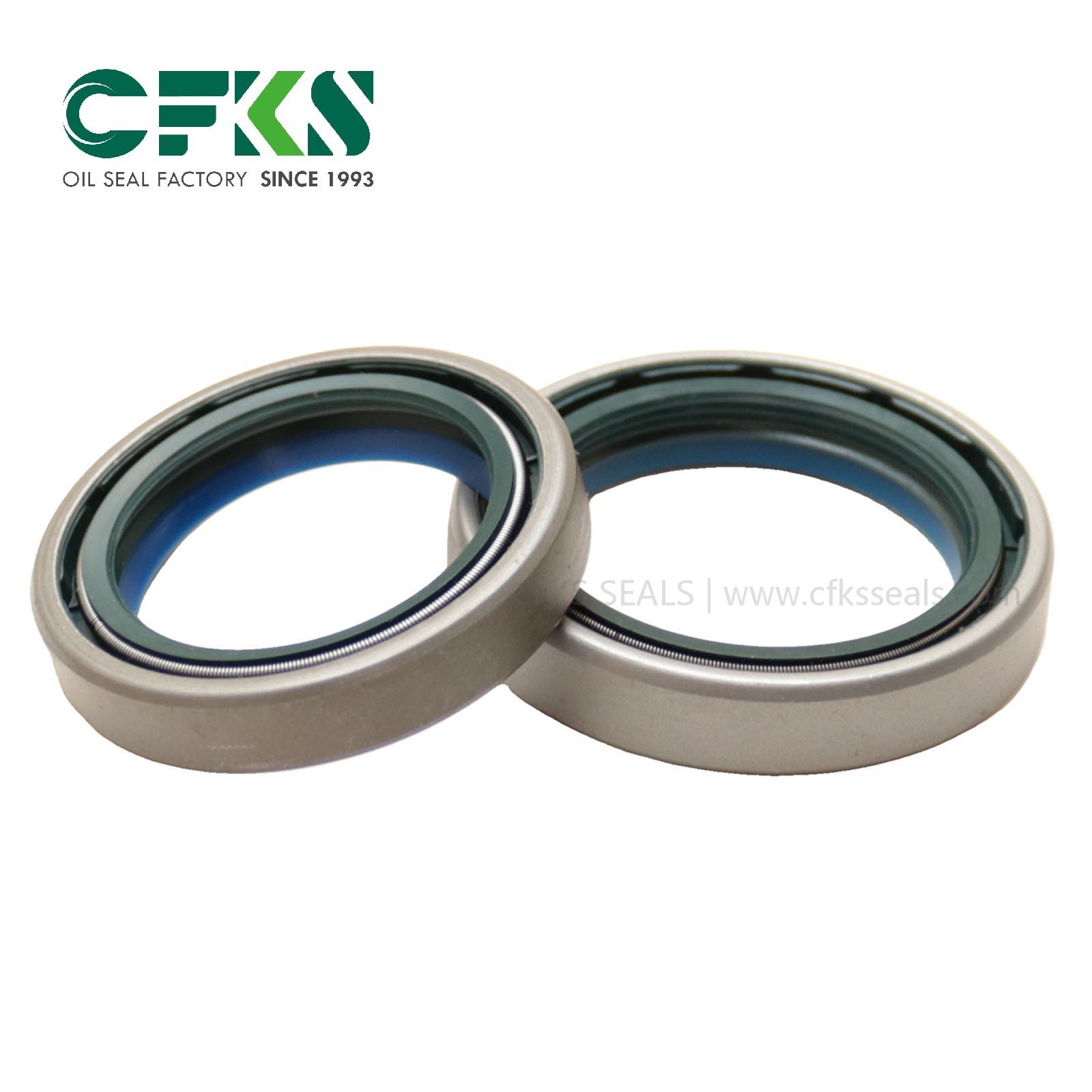

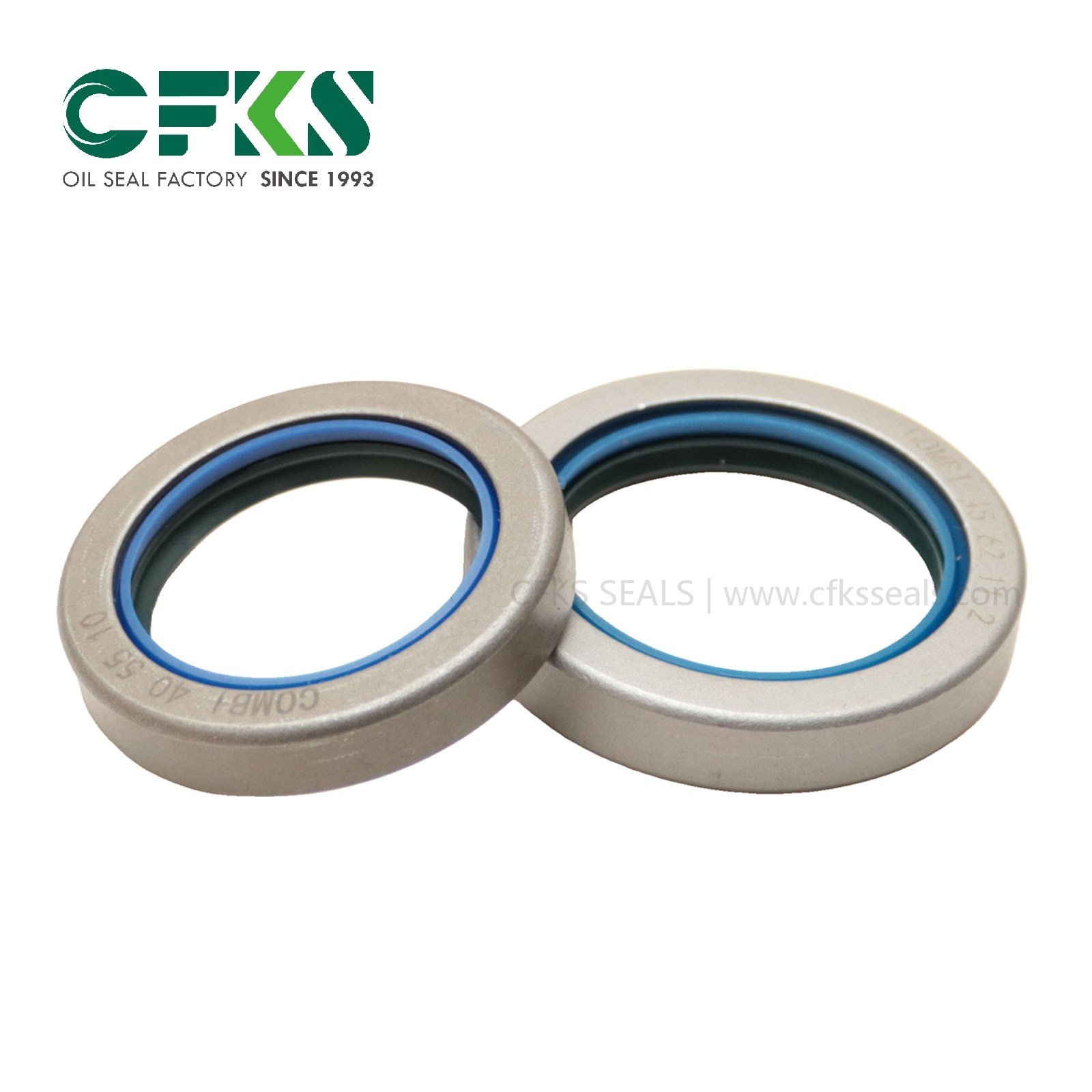

CFKS Multi-Lip NBR Combi Seal 45*62*19 Agricultural Hub Dust Protection Combined Oil Seal
CFKS Multi-Lip NBR Combi Seal 45*62*19 Agricultural Hub Dust Protection Combined Oil Seal - Image 2
CFKS Multi-Lip NBR Combi Seal 45*62*19 Agricultural Hub Dust Protection Combined Oil Seal - Image 3
CFKS Multi-Lip NBR Combi Seal 45*62*19 Agricultural Hub Dust Protection Combined Oil Seal - Image 4

CFKS Multi-Lip NBR Combi Seal 45*62*19 Agricultural Hub Dust Protection Combined Oil Seal

The CFKS 45*62*19 Multi-Lip NBR Combi Seal is a heavy-duty rotary boundary component engineered specifically for the brutal, high-contamination environments of agricultural wheel hubs, tractor axles, and heavy tillage equipment. By integrating a primary hydrodynamic oil lip with a massive, multi-stage dirt deflection labyrinth into a single, ultra-deep 19mm housing, this combined seal provides absolute isolation for expensive drivetrain bearings.

  • Ultra-Deep 19mm Architecture: The exceptional 19mm width accommodates a highly complex labyrinth excluder system, physically blocking packed mud, standing water, and abrasive rock dust.

  • Agricultural-Grade NBR: The specialized Nitrile elastomeric matrix actively resists chemical degradation from Universal Tractor Transmission Oils (UTTO), wet-brake fluids, and petroleum greases.

  • Unified Combi-Defense: Replaces vulnerable two-piece seal setups with a single, highly rigid structure that prevents catastrophic bearing failure during aggressive harvesting and field transport.

Find your sealing solution with CFKS — contact us for a quote.

Product Categories

Recent Posts

Brand Name CFKS OEM  Accpetable
Material NBR FKM Silicone  Features  wear resistance
Dimensions Customized Certificate  ISO9001/TS16949
Type Combi Seal  Packing 1 pc per bag



The core strength of this seal lies in its massive 19mm depth. This extended profile allows for a primary, spring-energized inner lip that strictly retains differential oil or wheel hub grease. Ahead of this hydrodynamic boundary, the seal features an integrated, heavy-duty “buffer” lip system that rests directly against the 45mm rotating spindle. This outer excluder acts as a physical plow. Any microscopic grit or water that manages to bypass the primary plow is captured within a grease-filled intermediate cavity, forming an impenetrable labyrinth seal that totally isolates the hub internals from environmental destruction.



Agricultural wheel hubs and axles operate under severe load shock and intense low-frequency vibration, but generally operate at lower speeds than automotive components. To ensure maximum longevity and cost-effectiveness, the dynamic internal sealing elements of this Combi seal are injection-molded from a highly cross-linked, high-density Nitrile Butadiene Rubber (NBR).

This grease packing is absolutely mandatory. It provides vital boundary lubrication to prevent the massive outer dirt excluder lips from burning up due to dry friction during initial road transport. Furthermore, it establishes a secondary hydrostatic barrier against water ingress. Technicians must also rigorously inspect the 45mm spindle or axle shaft; it must be polished to a surface finish of 0.2 to 0.4 μm Ra. If the previous seal cut a wear groove into the steel, a stainless steel speed sleeve must be installed over the 45mm shaft before pressing in the new CFKS Combi seal.

Frequently Asked Questions (FAQ)

Why does my CFKS oil seal fail prematurely? Common causes and prevention tips2025-06-26T15:44:39+08:00

Premature oil seal failure can result from improper installation, poor shaft finish, incorrect material selection, or excessive pressure. To prevent this, ensure the shaft surface is smooth and within tolerance, use correct tools during installation, and choose seals made from materials compatible with your media and temperature.

How to correctly install a CFKS industrial oil seal to avoid leakage2025-06-26T16:04:32+08:00

Always clean the shaft and bore before installation. Use appropriate seal drivers to avoid deformation. Lubricate the lip before fitting to reduce friction during the first rotation. Ensure the seal is seated evenly and not tilted to avoid leaks.

What to do when your CFKS hydraulic seal is leaking under pressure2025-05-20T16:33:14+08:00

Check if the pressure exceeds the seal’s rated limit. Examine for wear, hardening, or improper installation. Replace the seal if damaged, and consider upgrading to a high-pressure CFKS seal variant. Also, verify that the housing and shaft are properly aligned.

How to choose the right CFKS oil seal for extreme operating environments2025-05-20T16:34:39+08:00

For high temperatures, aggressive chemicals, or abrasive environments, choose CFKS seals made of FKM, PTFE, or high-performance elastomers. Consider using seals with protective dust lips or metal casing. Our team can recommend the best fit for your application.

CFKS Seal Manufacturing Co., Ltd.
https://cfksseals.com/
Email: cfksnacy@gmail.com  Mobile/WhatsApp/Wechat: (86) 188-3097-5917
COMBI Oil Seal Size List
SIZETYPECORTECO / NOK CODE
30*42* 14COMBI12001878B
30*44* 11COMBI12001879B
30*44*14COMBI12013519B
30*44* 17COMBI12020067B
32*50*10COMBI
32*50*14COMBI12013914B
35*50*10COMBI12001881B
35*50*13COMBI12013947B
35*52* 10COMBI12011716B
35*52* 16COMBI12001882B
35*52* 16COMBI12013466B
35*52* 16COMBI12015717B
35*52* 17/ 18.5COMBI12019673B
35*60*18.5COMBI12014167B
35*62* 12COMBI12012786B
35*72* 12COMBI12001883B
37*52* 16COMBI12014511B
40*55*10COMBI12001886B
40*55*15.5COMBI12018848B
40*58*10COMBI12001887B
40*60*18.5COMBI12012107B
40*60*25COMBI12016289B
40*62* 10COMBI12011715B
40*62* 14COMBI12001889B
40*65*18.5COMBI12013226B
40*65*27.5COMBI12020191B
40*68*14COMBI12013319B
40*68*18.5COMBI12013464B
42*62*14COMBI12001889B
42*62* 17COMBI12001890B
42*62*21.5COMBI12016507B
42*62*23COMBI12020023B
45*60*16COMBI12014997B
45*62* 11COMBI12012296B
45*62* 11.2COMBI12016814B
45*65*12COMBI12011969B
45*65*15COMBI12001894B
45*65*16COMBI12019329B
45*65*18.5COMBI12012377B
45*65*21COMBI12013466B
45*65*25COMBI12018030B
45*75*27.5COMBI12020036B
46*60*16COMBI12014997B
46*65*16COMBI12019329B
46*65*21COMBI12013466B
46.15*80*16.5COMBI12016669B
47*65*16.5COMBI12015734B
47*65*19COMBI12020133B
48*65*11COMBI12011991B
48*65*16.5COMBI12077310B
48*65*18.5COMBI12017310B
48*65*19COMBI12036965B
48*74* 13COMBI12001898B
48*74* 18.5COMBI12017349B
50*65*18COMBI12018616B
